Doctor Blade Assemblies

Combination of doctor blade, back-up blade and blade holder
Doctor Blade Assemblies
  • Doctor Blade Assemblies
  • Doctor Blade Assemblies
  • Doctor Blade Assemblies
Request a Quote

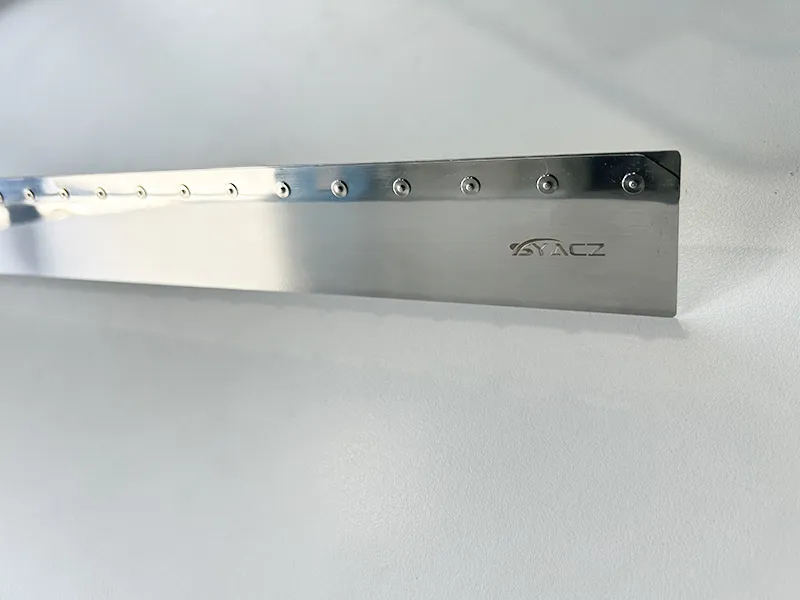

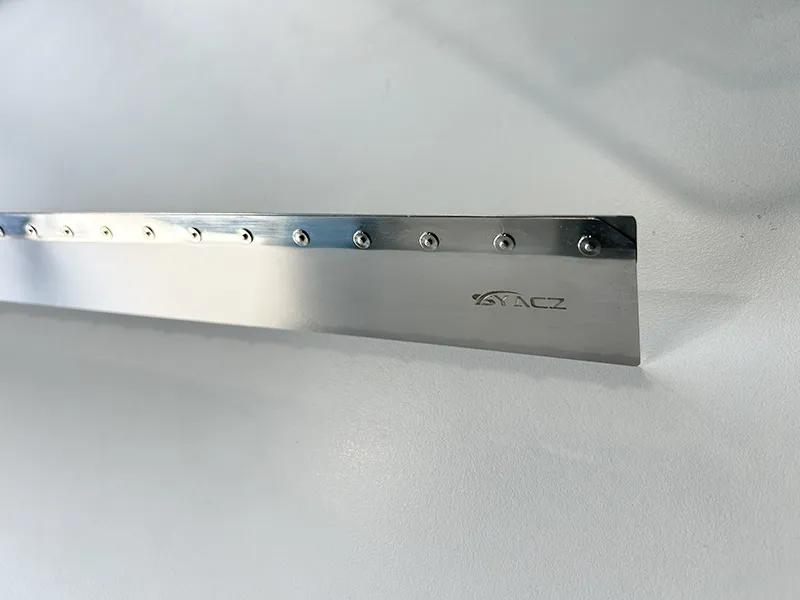

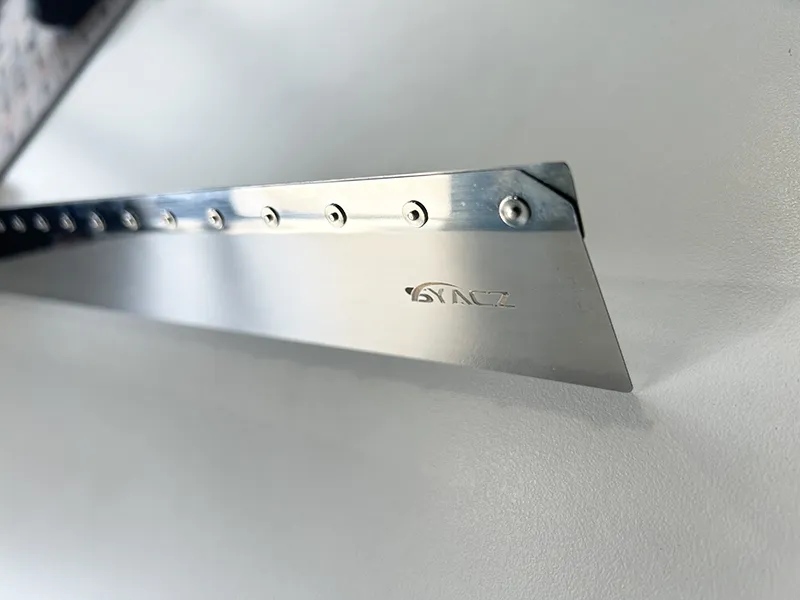

Doctor blade assemblies are designed to optimize blade usage and reduce maintenance time in printing operations. This system replaces traditional wide doctor blades with a modular setup, consisting of a blade holder, a 10×0.102mm narrow doctor blade, and an 8×0.152mm wide back-up blade. The entire assembly is installed in the same position as a conventional wide doctor blade but offers a more efficient and cost-effective replacement process. Once installed, routine blade changes only require removing and replacing the 10mm-wide narrow doctor blade, eliminating the need to frequently replace the entire blade assembly. This design helps reduce downtime, lower material costs, and improve overall print consistency.

Advantages
  • Thinner doctor blades provide better flexibility, ensuring a closer and more even contact with the printing plate. This improves ink metering and helps prevent issues like haze and blade streaks.
  • No break-in period is required, ensuring consistent printing results from the moment the blade is installed.
  • Blade replacement takes only 10 seconds, reducing machine downtime and improving production efficiency.
  • Lower blade consumption results in significant cost savings, as only the narrow doctor blade needs to be replaced, while the back-up blade and holder remain in use for extended periods.
Find the Best Doctor Blade for Your Printing Needs. Contact Us Now!
Email: 18255555333@163.com
Mobile: +86-18255555333
Related Products

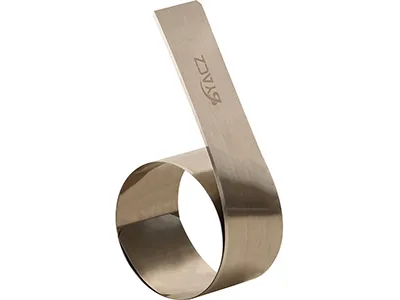

    1. Doctor Blades
      Doctor Blades

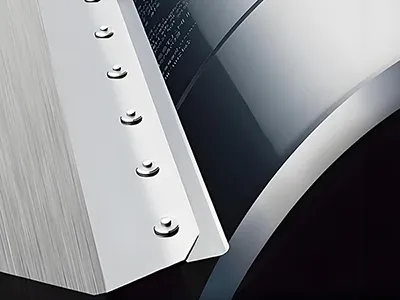

    1. Doctor Blade Holders
      Doctor Blade Holders

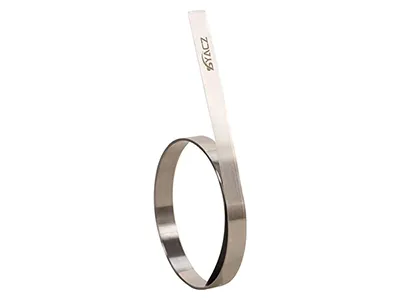

    1. Back-up Blades
