Reliable Doctor Blades for Printing Applications

Chuangzuan focuses on the development and production of doctor blades, supplying over 50,000 boxes annually to the printing industry. Our doctor blades are engineered to ensure consistent ink transfer, minimize wear on printing cylinders, and enhance overall print quality. To guarantee precision and durability, each blade undergoes 500x magnification edge inspection, achieving micron-level accuracy. With proper use and maintenance, our doctor blades can last over 100,000 meters, offering a reliable solution for high-demand printing applications. Additionally, we provide technical support, fast delivery, and customized solutions to accommodate various production needs.

Our Doctor Blades
  • Doctor Blades
  • Doctor Blade Holders
  • Back-up Blades
  • Doctor Blade Assemblies

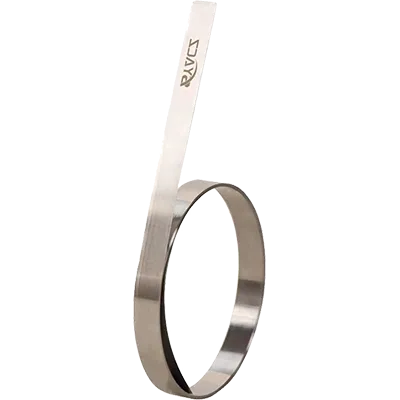

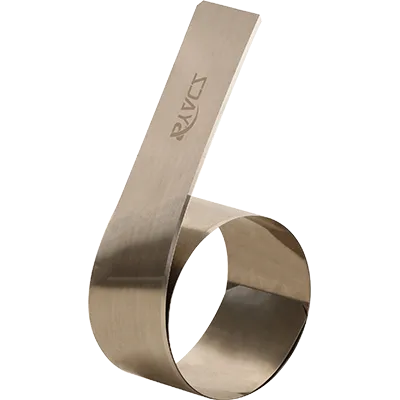

    1. SL-47 (4028Mo Stainless Steel)
      SL-47 (4028Mo Stainless Steel)
      Width: 10mm to 60mm
      Thickness: 0.152mm-0.203mm
      Edge: Lamella, Bevel
    1. SL-48 (4037 Stainless Steel)
      SL-48 (4037 Stainless Steel)
      Width: 10mm to 60mm
      Thickness: 0.152mm-0.203mm
      Edge: Lamella, Bevel
    1. CB-10 (C100S Carbon Steel)
      CB-10 (C100S Carbon Steel)
      Width: 8mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Short Lamella, Long Lamella, Short Bevel, Long Bevel, Round, Square
    1. CC-20 (1274 Carbon Steel)
      CC-20 (1274 Carbon Steel)
      Width: 8mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Short Lamella, Long Lamella, Short Bevel, Long Bevel, Round, Square
    1. CC-67 (2067 Carbon Steel)
      CC-67 (2067 Carbon Steel)
      Width: 8mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Short Lamella, Long Lamella, Short Bevel, Long Bevel, Round, Square
    1. CZ-30 (20C2 Carbon Steel)
      CZ-30 (20C2 Carbon Steel)
      Width: 8mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Short Lamella, Long Lamella, Short Bevel, Long Bevel, Round, Square
    1. C1000 (2067 Carbon Steel)
      C1000 (2067 Carbon Steel)
      Width: 10mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Lamella, Bevel
    1. C2000 (20MC1 Carbon Steel)
      C2000 (20MC1 Carbon Steel)
      Width: 10mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Lamella, Bevel
    1. GZ-100 (2067 Carbon Steel)
      GZ-100 (2067 Carbon Steel)
      Width: 10mm to 60mm
      Thickness: 0.152mm-0.3mm
      Edge: Lamella, Bevel
    1. GZ-200 (20MC1 Carbon Steel)
      GZ-200 (20MC1 Carbon Steel)
      Width: 10mm to 60mm
      Thickness: 0.152mm-0.203mm
      Edge: Lamella, Bevel
    1. Doctor Blade Holders
      Doctor Blade Holders
      40mm×1200mm to 40mm×1800mm
      50mm×1200mm to 50mm×1800mm
      60mm×1200mm to 60mm×1800mm
    1. Back-up Blades
      Back-up Blades
      Width: 8mm-55mm
      Thickness: 0.15mm-0.5mm
      Custom options are available upon request
Have questions about doctor blades? Let’s find the right one for your printing application!
Email: 18255555333@163.com
Mobile: +86-18255555333
Contact Us
Applications

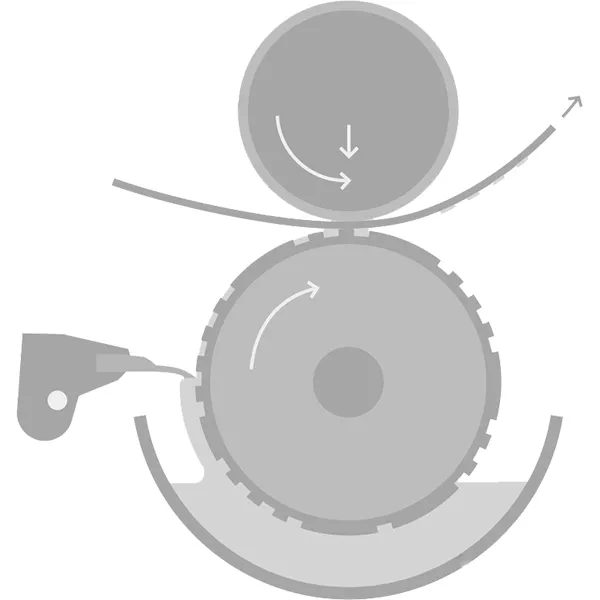

  • Gravure Printing
