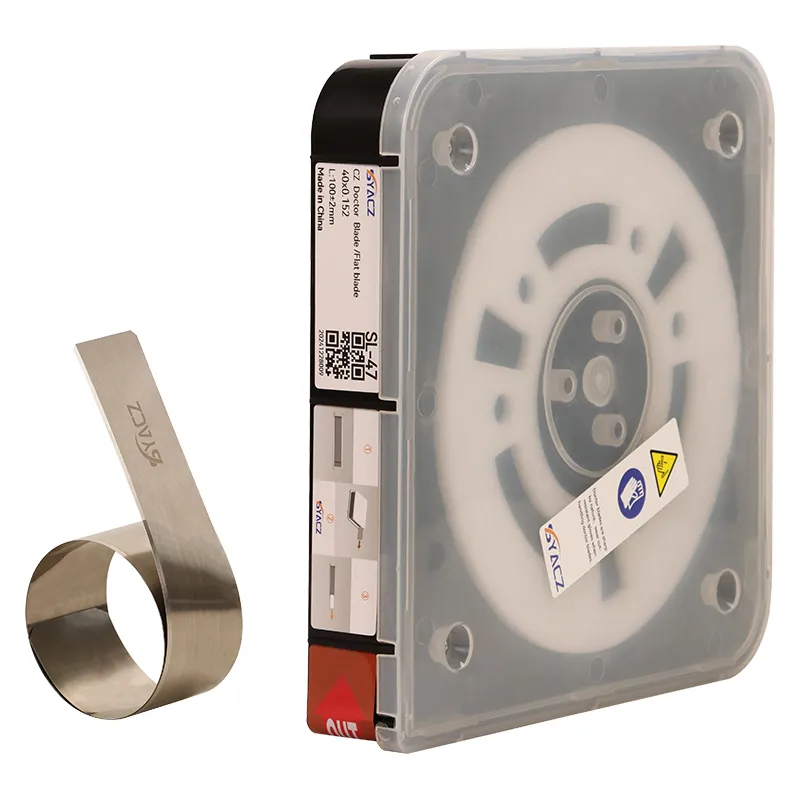

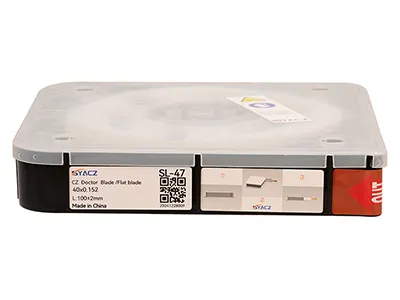

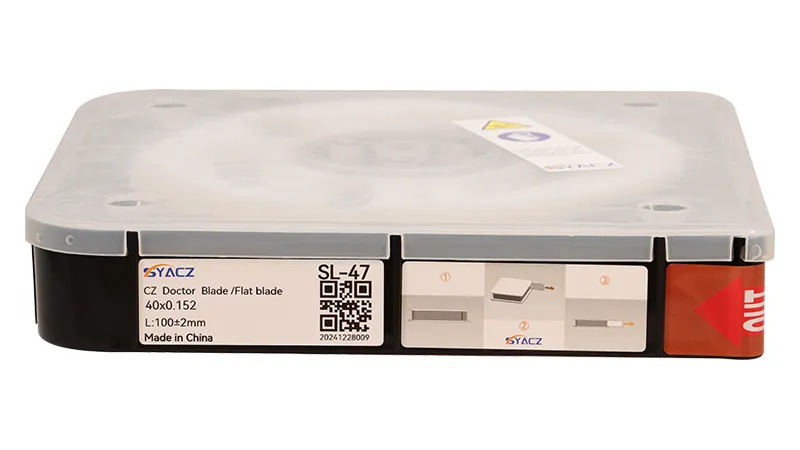

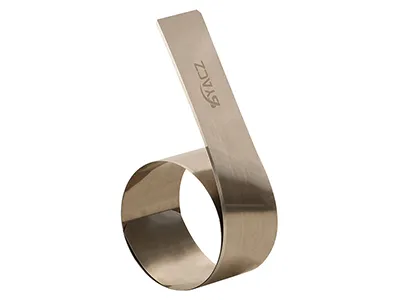

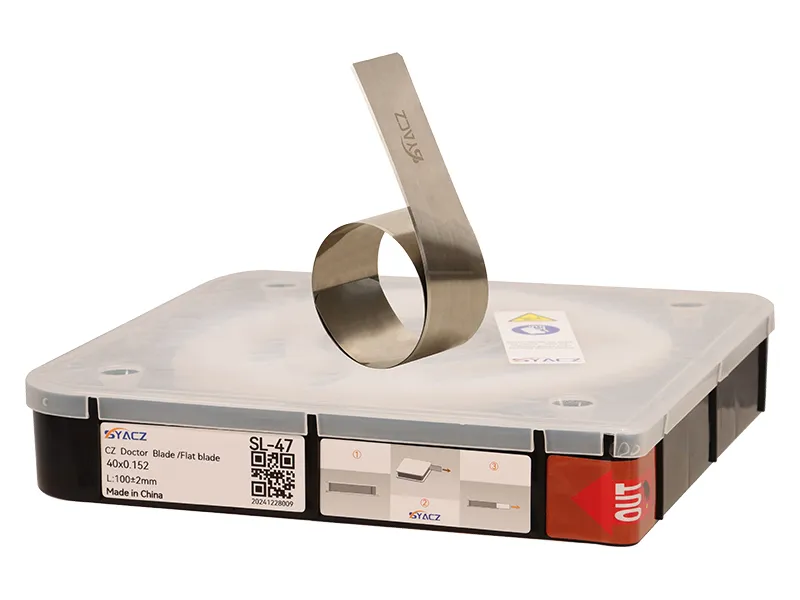

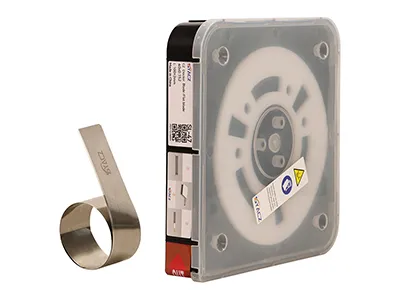

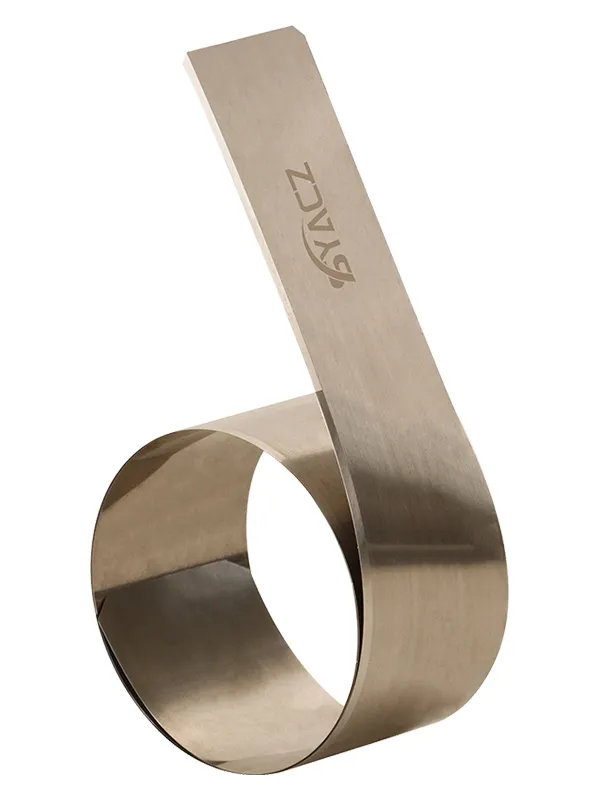

SL-47 METAL DOCTOR BLADE

Stainless Steel Doctor Blades
SL-47 (4028Mo Stainless Steel)
  • SL-47 (4028Mo Stainless Steel)
  • SL-47 (4028Mo Stainless Steel)
  • SL-47 (4028Mo Stainless Steel)
  • SL-47 (4028Mo Stainless Steel)
Request a Quote Material Composition Report
Blade Edge Shapes

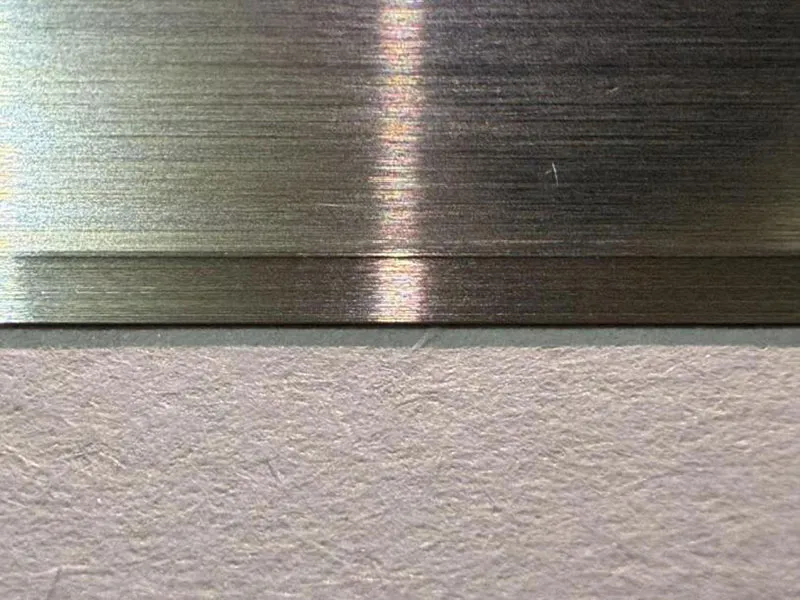

  • SL-47 (4028Mo Stainless Steel) Lamella Blade Edge
  • SL-47 (4028Mo Stainless Steel) Bevel Blade Edge
Specifications
Width Range: 10mm-60mm
Width Tolerance: ±0.1mm
Thickness Range: 0.152mm-0.203mm
Thickness Tolerance: ±0.005mm
Hardness: 550-580HV
Tensile Strength: 1800Pa
Straightness: ≤0.5mm/3000mm
Dimensions
  • 10mm×0.15mm×100m
  • 30mm×0.15mm×100m
  • 30mm×0.2mm×100m
  • 35mm×0.15mm×100m
  • 35mm×0.2mm×100m
  • 40mm×0.15mm×100m
  • 40mm×0.2mm×100m
  • 50mm×0.15mm×100m
  • 50mm×0.2mm×100m
  • 60mm×0.15mm×100m
  • 60mm×0.2mm×100m
(The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.)
Products
Application Processes

Gravure printing, Flexo printing, Roller Coating, Adhesive coating

Products
Ink Types

Water based ink, UV ink, Aggressive inks with high pH value

Made from 4028Mo stainless steel, these doctor blades offer excellent resistance to rust and corrosion, providing a reliable solution for demanding printing applications. Their combination of flexibility and durability allows them to handle medium to high-viscosity inks effectively, ensuring smooth and consistent ink transfer. Our 4028Mo stainless steel doctor blades can be used with water-based and high-pH inks, they help maintain print quality by preventing deterioration caused by chemical exposure.

Find the Best Doctor Blade for Your Printing Needs. Contact Us Now!
Email: 18255555333@163.com
Mobile: +86-18255555333
When should stainless steel doctor blades be used?

Stainless steel doctor blades are recommended when printing with water-based inks, UV inks, or high-pH solvents. Their corrosion-resistant properties prevent contamination caused by rust, ensuring stable ink transfer and consistent print quality.

What are the advantages of stainless steel doctor blades?

Stainless steel doctor blades provide long-term stability and consistent performance, even in demanding printing environments. Their corrosion resistance prevents rust buildup, keeping the ink free from contamination and ensuring uniform print quality. The smooth, well-finished blade edge ensures precise ink metering, minimizing issues such as streaks, ink buildup, and blade lines. With high durability and wear resistance, these blades last longer, reducing the need for frequent replacements and lowering maintenance costs. Their combination of reliability, longevity, and ink control makes them an excellent choice for printing professionals using water-based and high-pH inks.

Where are stainless steel doctor blades commonly used?

These blades are widely used in gravure and flexographic printing, especially in applications that involve water-based, UV, and high-pH solvent-based inks. Their resistance to corrosion and consistent performance makes them suitable for industries requiring sharp and uniform prints.

Which blade is best for challenging printing conditions with corrosive inks?

For harsh printing environments, the SL-48 stainless steel blade, made from 4037 stainless steel, is the ideal choice. It offers enhanced corrosion resistance and durability, with a lifespan exceeding 20,000 meters. This makes it particularly suitable for water-based and aggressive solvent inks, as well as specialty ink applications.
