Ceramic-Coated Doctor Blades

Ceramic-Coated Doctor Blades

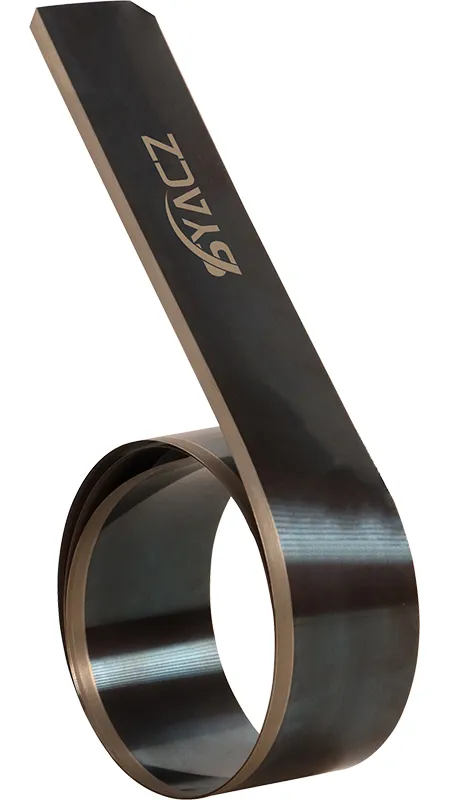

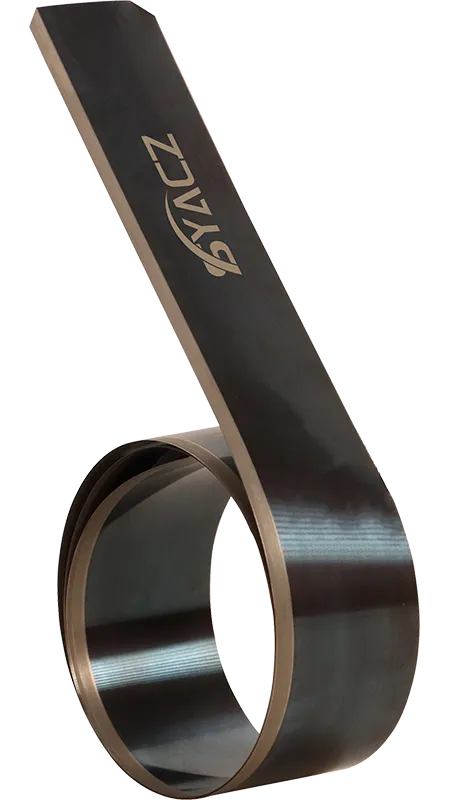

Carbon steel doctor blade with a ceramic coating suitable for abrasive inks
  • Short Lamella Blade Edge
  • Long Lamella Blade Edge

Our ceramic coated doctor blades combine the durability of carbon steel with the wear resistance of a ceramic coating, providing enhanced longevity for applications involving abrasive inks and extended print runs. The ceramic layer reinforces the blade edge, significantly reducing wear and extending its service life compared to standard carbon steel blades.

The ceramic-coated doctor blades are available in two series: C1000 and C2000, produced using high-quality European carbon steel, which already offers strong wear resistance. The addition of a ceramic coating and precision-polished edge enhances longevity, providing up to 10 times the durability of standard carbon steel blades. The C2000 doctor blades, with their dual-layer ceramic coating, reaches a lifespan of over 100,000 meters, ensuring stable ink metering and improved color consistency. These properties enable ceramic-coated doctor blades to maintain print quality over long production cycles, ensuring effectiveness in high-volume and specialty printing applications.

More
    • C1000 (2067 Carbon Steel)
      C1000 (2067 Carbon Steel)

      This series of doctor blades are made from 2067 carbon steel and feature a specialized ceramic coating with a thickness of 6-8μm, enhancing wear resistance and extending operational lifespan.

      Details

      Specifications

      Width range: 10mm-60mm
      Width tolerance: ±0.1mm
      Thickness range: 0.152mm-0.3mm
      Thickness tolerance: ±0.005mm
      Hardness: 780-810HV
      Tensile strength: 1850-2100Pa
      Straightness: ≤0.5mm/3000mm
      Coating thickness: 6-8μm
    • C2000 (20MC1 Carbon Steel)
      C2000 (20MC1 Carbon Steel)

      These doctor blades are built for high-speed printing applications, offering enhanced wear resistance and durability. Manufactured with 20MC1 carbon steel as the base material, they feature a dual-layer ceramic coating with a thickness of 10-15μm.

      Details

      Specifications

      Width range: 10mm-60mm
      Width tolerance: ±0.1mm
      Thickness range: 0.152mm-0.3mm
      Thickness tolerance: ±0.005mm
      Hardness: 780-810HV
      Tensile strength: 1850-2100Pa
      Straightness: ≤0.5mm/3000mm
      Coating thickness: 10-15μm
Have questions about doctor blades? We’re here to help!
Email: 18255555333@163.com
Mobile: +86-18255555333
Contact Us

The ceramic coating enhances wear resistance, extending the blade's lifespan to over 100,000 meters. With added corrosion resistance, these blades help reduce color inconsistencies, ink drag, and streaking, ensuring sharp and precise prints even in demanding applications.

These blades are commonly used in gravure and flexographic printing, excelling in spot color, full coverage, and high-gloss printing. The ceramic layer helps compensate for the wear limitations of other blade types, maintaining consistent performance over long production runs.

For applications requiring precise ink metering, extended durability, and reduced maintenance, the C2000 ceramic-coated doctor blade is an ideal choice. The dual-layer ceramic coating improves performance in spot color printing, full coverage designs, fine line printing, QR code printing, and leather applications. This blade performs well with corrosive inks, high-viscosity formulations, and metallic particle-based inks, ensuring long-lasting use while maintaining print quality.
