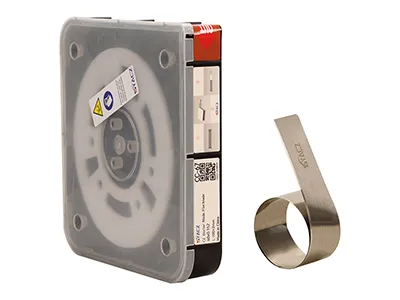

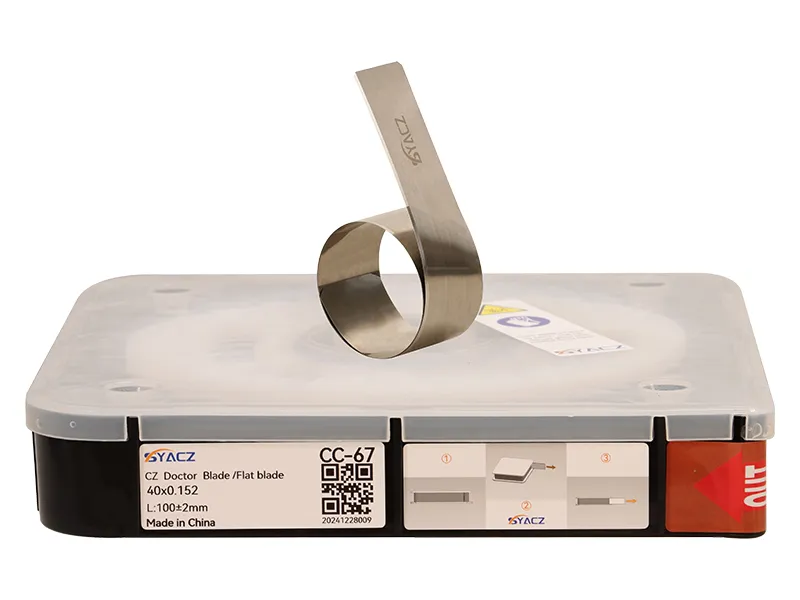

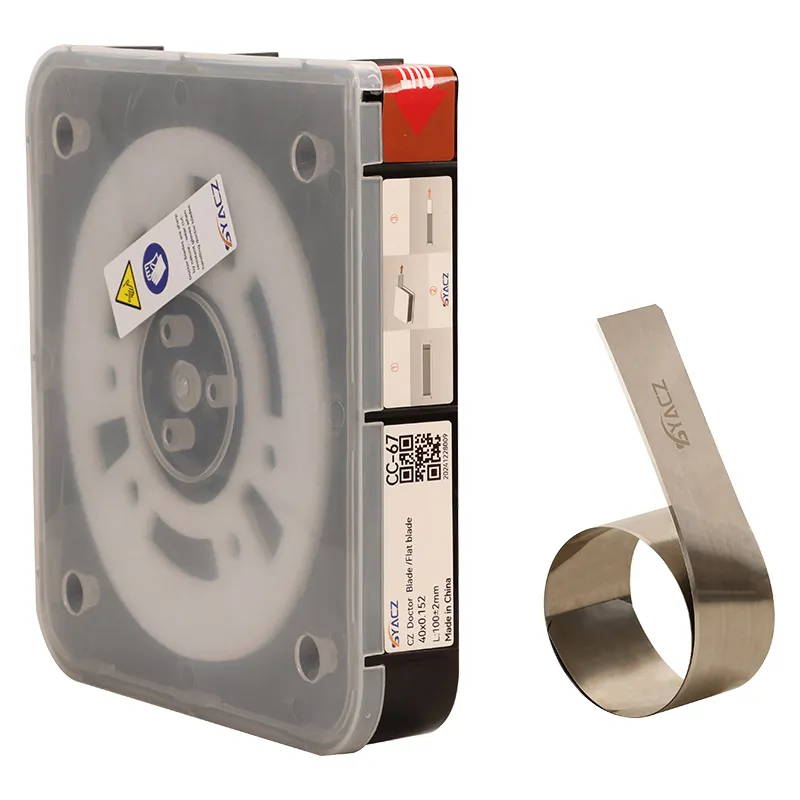

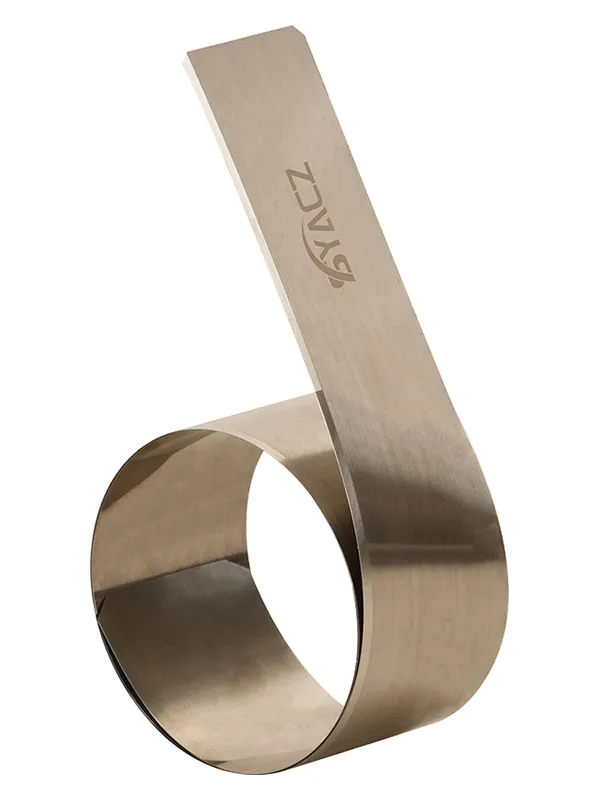

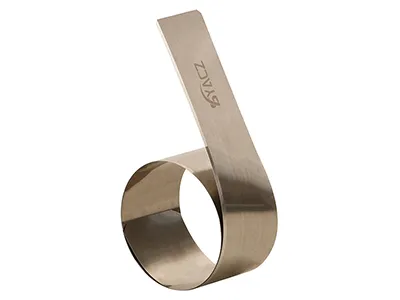

CC-67 METAL DOCTOR BLADE

Carbon Steel Doctor Blades
CC-67 (2067 Carbon Steel)
  • CC-67 (2067 Carbon Steel)
  • CC-67 (2067 Carbon Steel)
  • CC-67 (2067 Carbon Steel)
Request a Quote Material Composition Report

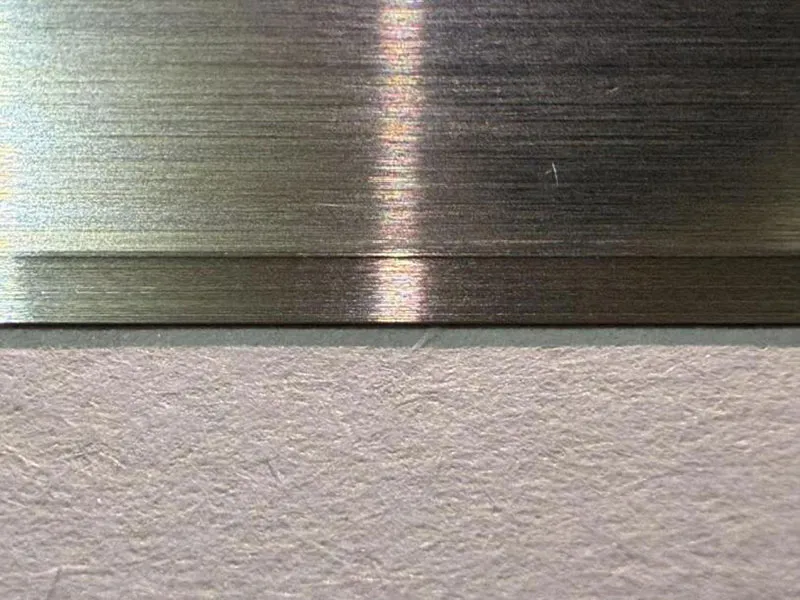

Blade Edge Shapes
  • Short Lamella Blade Edge
  • Long Lamella Blade Edge
  • Short Bevel Blade Edge
  • Long Bevel Blade Edge
  • Round Blade Edge
  • Square Blade Edge
Specifications
Width Range: 8mm-60mm
Width Tolerance: ±0.1mm
Thickness Range: 0.152mm-0.3mm
Thickness Tolerance: ±0.005mm
Hardness: 600-620HV
Tensile Strength: 1850-2150Pa
Straightness: ≤0.5mm/3000mm
Dimensions
  • 8mm×0.15mm×100m
  • 9mm×0.15mm×100m
  • 10mm×0.102mm×200m
  • 10mm×0.15mm×100m
  • 20mm×0.15mm×100m
  • 20mm×0.2mm×100m
  • 30mm×0.15mm×100m
  • 30mm×0.2mm×100m
  • 35mm×0.15mm×100m
  • 35mm×0.2mm×100m
  • 40mm×0.15mm×100m
  • 40mm×0.2mm×100m
  • 40mm×0.3mm×100m
  • 50mm×0.15mm×100m
  • 50mm×0.2mm×100m
  • 60mm×0.15mm×100m
  • 60mm×0.2mm×100m
The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.
Features
These doctor blades have a high-hardness composition which ensures that their edges remain intact for prolonged use, minimizing surface wear and print inconsistencies.
Resistance to oxidation and chemical corrosion supports reliable performance in demanding printing conditions.
Compatibility with corrosive and varnish-based inks helps protect printing plates from unnecessary damage.
The ability to handle high-viscosity black inks ensures even distribution and predictable results.
A polished blade edge contributes to smoother ink transfer, particularly in varnishing applications.
Products
Application Processes

Gravure printing, Flexo printing, Roller Coating, Adhesive coating, Lamination

Products
Ink Types

Solvent-based ink, Corrosive ink, Varnish

Doctor blades made from ZAPP 2067 carbon steel offer increased durability and wear resistance, and are suitable for medium to high-speed printing at speeds of up to 250m/min. The enhanced material composition helps counteract the effects of ink impurities, which can cause blade damage, color inconsistencies, and streaking over time. By reducing these issues, these metal doctor blades contribute to more stable and uniform print quality. Their strong resistance to corrosion and oxidation allows these doctor blades to maintain their integrity when exposed to varnishes and chemically reactive inks. The extended lifespan ensures that print professionals can minimize blade replacements while maintaining consistent ink transfer across long production runs.
Find the Best Doctor Blade for Your Printing Needs. Contact Us Now!
Email: 18255555333@163.com
Mobile: +86-18255555333

Carbon steel doctor blades provide a cost-effective solution for printing applications that require high durability and strong wear resistance. Their hardness and edge stability ensure consistent ink metering, while the polished surface helps maintain clean ink transfer and reduces common printing defects. These blades are particularly suitable for small to medium print runs, offering a reliable balance between performance and affordability.

The combination of hardness and wear resistance allows these blades to maintain uniform ink distribution, reducing streaking, haze, and ink drag. The polished edge minimizes plate wear, ensuring precise ink control and sharper print details. By providing consistent performance throughout extended use, they contribute to overall print stability.

For basic printing needs where cost efficiency is a priority, CB-10 doctor blades are a practical option. With a maximum speed of 150m/min, they work well in gravure, flexographic, adhesive coating, woven bag printing, plastic film printing, cardboard printing, and coating applications.

For short-run applications that demand improved durability and print clarity, CC-20 doctor blades provide strong wear resistance and smooth blade wear. Capable of handling speeds up to 200m/min, they help reduce streaking and haze, ensuring a cleaner ink transfer in gravure and flexographic printing.

Printing conditions involving thicker, more abrasive inks require CZ-30 doctor blades. Manufactured from 20C2 carbon steel, these metal doctor blades support speeds up to 350m/min while preventing ink buildup and blade wear. The polished edge enhances performance by reducing streaking, haze, and ink drag, which is ideal for fine detail, deep-tone printing, and ceramic plate applications.
