CB-10 METAL DOCTOR BLADE

Carbon Steel Doctor Blades

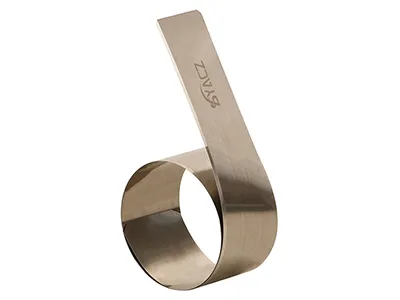

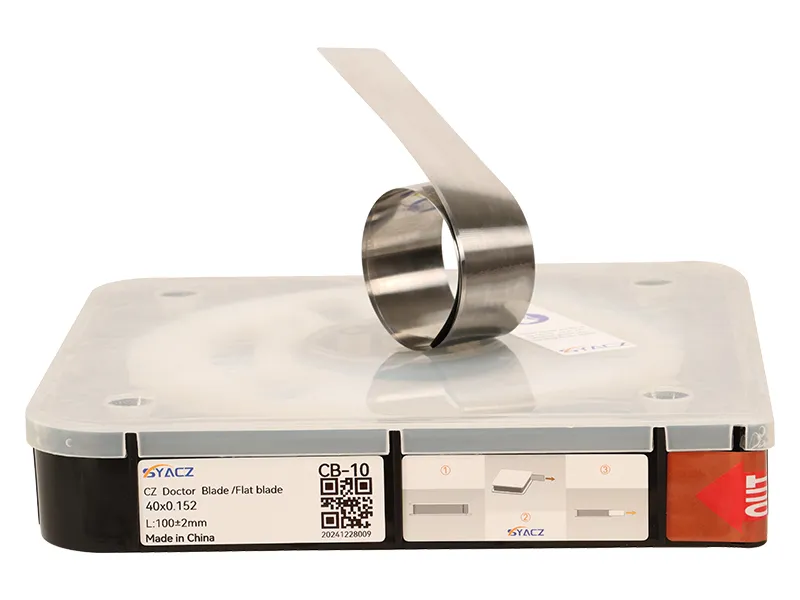

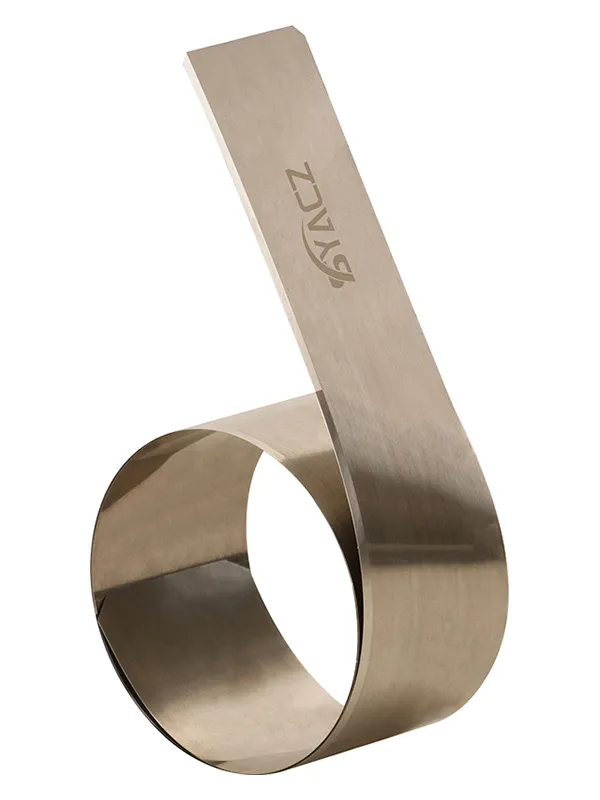

CB-10 (C100S Carbon Steel)
  • CB-10 (C100S Carbon Steel)
  • CB-10 (C100S Carbon Steel)
  • CB-10 (C100S Carbon Steel)
Request a Quote Material Composition Report
Blade Edge Shapes
  • Short Lamella Blade Edge
  • Long Lamella Blade Edge
  • Short Bevel Blade Edge
  • Long Bevel Blade Edge
  • Round Blade Edge
  • Square Blade Edge
Specifications
Width Range: 8mm-60mm
Width Tolerance: ±0.1mm
Thickness Range: 0.152mm-0.3mm
Thickness Tolerance: ±0.005mm
Hardness: 550-580HV
Tensile Strength: 1850-2000Pa
Straightness: ≤0.5mm/3000mm
Dimensions
  • 8mm×0.15mm×100m
  • 9mm×0.15mm×100m
  • 10mm×0.102mm×200m
  • 10mm×0.15mm×100m
  • 20mm×0.15mm×100m
  • 20mm×0.2mm×100m
  • 30mm×0.15mm×100m
  • 30mm×0.2mm×100m
  • 35mm×0.15mm×100m
  • 35mm×0.2mm×100m
  • 40mm×0.15mm×100m
  • 40mm×0.2mm×100m
  • 40mm×0.3mm×100m
  • 50mm×0.15mm×100m
  • 50mm×0.2mm×100m
  • 60mm×0.15mm×100m
  • 60mm×0.2mm×100m
(The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.)
Features
Enhanced durability compared to standard carbon steel blades, reducing blade scoring, ink smearing, and inconsistent ink coverage during printing.

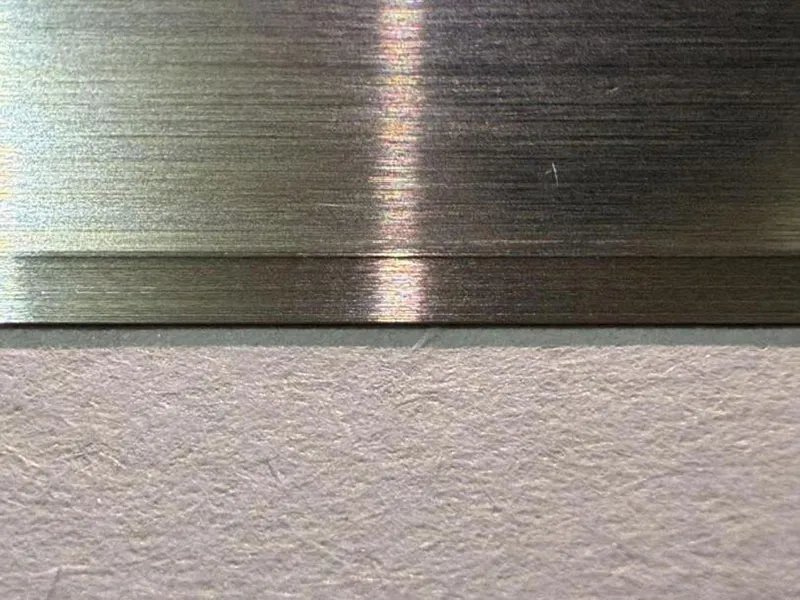

These doctor blades have polished edges that adapt quickly to the printing plate, minimizing break-in time and ensuring smooth ink transfer.
Consistent performance in both short and long print runs, maintaining print stability throughout extended use.
Optimized for medium-speed printing equipment, handling speeds up to 150m/min. Commonly used for wallpaper, wood grain paper, textile patterns, and decorative printing, where precise ink control improves efficiency and print consistency.
Products
Application Processes

Gravure printing, Flexo printing, Transfer printing

Products
Ink Types

Solvent-based ink, Low-corrosion ink, Inks with low pH value

These carbon steel doctor blades are designed for medium-speed printing presses, providing high wear resistance and stable performance. Made from C100S carbon steel, they support speeds of up to 150m/min, ensuring efficient ink removal and consistent print quality. Their versatility makes them a reliable choice for gravure and flexographic printing across different applications.
Find the Best Doctor Blade for Your Printing Needs. Contact Us Now!
Email: 18255555333@163.com
Mobile: +86-18255555333

Carbon steel doctor blades provide a cost-effective solution for printing applications that require high durability and strong wear resistance. Their hardness and edge stability ensure consistent ink metering, while the polished surface helps maintain clean ink transfer and reduces common printing defects. These blades are particularly suitable for small to medium print runs, offering a reliable balance between performance and affordability.

The combination of hardness and wear resistance allows these blades to maintain uniform ink distribution, reducing streaking, haze, and ink drag. The polished edge minimizes plate wear, ensuring precise ink control and sharper print details. By providing consistent performance throughout extended use, they contribute to overall print stability.

For basic printing needs where cost efficiency is a priority, CB-10 doctor blades are a practical option. With a maximum speed of 150m/min, they work well in gravure, flexographic, adhesive coating, woven bag printing, plastic film printing, cardboard printing, and coating applications.

For short-run applications that demand improved durability and print clarity, CC-20 doctor blades provide strong wear resistance and smooth blade wear. Capable of handling speeds up to 200m/min, they help reduce streaking and haze, ensuring a cleaner ink transfer in gravure and flexographic printing.

Printing conditions involving thicker, more abrasive inks require CZ-30 doctor blades. Manufactured from 20C2 carbon steel, these metal doctor blades support speeds up to 350m/min while preventing ink buildup and blade wear. The polished edge enhances performance by reducing streaking, haze, and ink drag, which is ideal for fine detail, deep-tone printing, and ceramic plate applications.
